Joan 13 Pro - Technical specifications

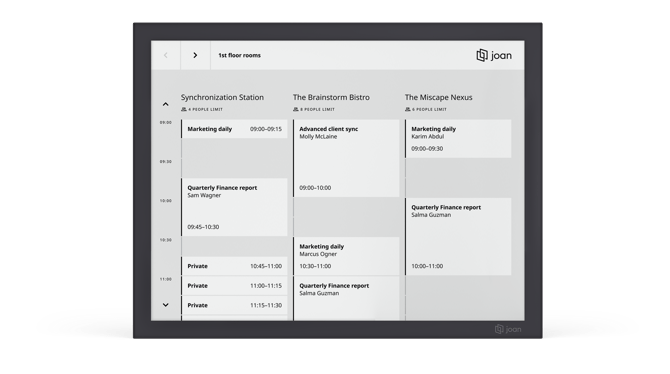

Joan 13 Pro Black - 3 rooms view-1

Display

  • 13.3-inch (4:3 diagonal) interactive touch E Ink® electronic paper screen
  • High visibility & contrast, 180° viewing angle
  • Resolution: 1600 × 1200 pixels
  • Active area: 10.64 × 7.98 in (270.4 × 202.8 mm)
  • Pixel density: 150 PPI, 16-level grayscale
  • Refresh rates: 750 ms full / 100 ms partial

Connectivity

  • 2.4/5 GHz Wi-Fi (IEEE 802.11 a/b/g/n) standard, WPA2-PSK, WPA3 Personal, WPA2 Enterprise support
  • 2.4 GHz Bluetooth 5 support
  • Ethernet via optional PoE wall-mount (IEEE 802.3u) standard, compliant 100BASE-FX, 100BASE-TX, 10BASE-Te)

Power

  • Patented ultra-low energy architecture, only 1% of the power LCD uses
  • High-performance rechargeable Lithium-Polymer 10,800 mAh battery (2x 469094-PLC; 5,400 mAh @ 3.7V).  Up to 6 months of autonomy on a single battery charge. 10 hours charging time with a USB-C charger (output rating of 5 V, 1 A).
  • Power-Over-Ethernet compatible
CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Calendar Compatibility

  • Google Workspace (Former G Suite; Google Calendar)
    • OAuth2 authentication
  • Office 365 (Exchange Online)
    • OAuth2 authentication
  • Microsoft Exchange (Outlook)
    • Basic authentication
    • NTLM proprietary authentication protocol
  • iCalendar (.ics)

Data security

  • TLS 1.3 available for end-to-end encryption

Dimensions & weight

  • Device: 11.40 × 9.05 × 0.39 in (297 × 230 × 10.5 mm)
  • Weight (with magnet): 950 g (33.5 oz)
  • Product box: 13.78 × 9.25 × 0.59 in
  • Shipping box: 15.91 × 11.22 × 3.35 in
  • Total shipping weight: 1850 g (65.26 oz)

Casing

  • Anodized aluminum
  • Anti-reflective, high transmissive glass
  • Available in Gray or Black

Mounting

  • Attachable to any surface with a self-adhesive Magnetic Mount
  • Optional mounting with the 3.94 x 3.94 in (100 x 100 mm) VESA mount
  • The device can be mounted at a maximum height of 2 meters

Environmental conditions

  • Operating and storage temperature range: 32°F to 113°F (0°C to +45°C)
  • Indoor use only

What’s in the box

  • 13.3-inch wireless Joan 13 Pro device
  • 1 Magnetic Mount for Joan 13 Pro
  • 1 USB-C cable for configuration and charging
  • Onboarding information
  • Access to the MyJoan Portal

Warranty

  • One-year Limited Warranty




* Please note, that the 6-month autonomy can be reached with optimal WiFi signal strength and a 5x10-hour weekly schedule. Read more about office hours here

Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
