The PoE Secure Wall Mount for Joan 13 Pro enables Ethernet connectivity, PoE charging, and LED room occupancy indicators, with a Smart Magnet for automatic room detection.
The PoE Secure Wall Mount for Joan 13 Pro devices extends the functionalities of the smart magnet while providing an excellent solution to keep your devices seamlessly integrated into your office environment.
It enables the Joan 13 Pro device to connect to the network using ethernet cable. This way there are no more problems if the device does not have good wireless signal coverage or if you wish to tighten your network security.
While the device is attached to the wallmount, it is charged by power over the ethernet cable (PoE) enabling zero maintenance for charging a device.
On the sides of the wall mount, there are LED lights providing information about the room occupancy.
When the room is booked the LEDs on the sides of the wall mount are glowing red.
If the room is free they are glowing green.
The LED lights are starting to glow in orange color 15 minutes before the meeting starts.
That’s useful for quickly seeing which meeting room is free, e.g. down the hallway.
The PoE wall-mount contains a built-in Smart Magnet that detects the room automatically in case the Joan 13 pro device is swapped/replaced.
Quick start guide:

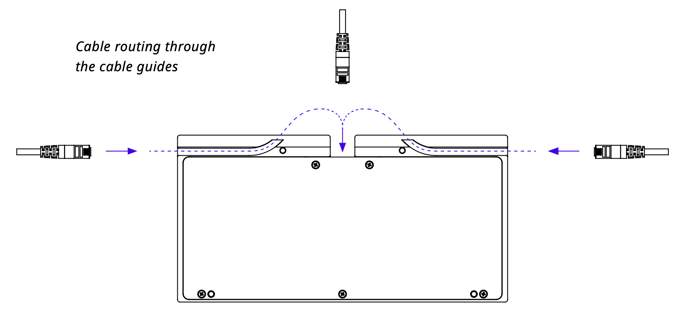

- Connect your ethernet cable to the PoE Secure Wall Mount. The cable can be inserted from the top, right or left of the unit. If inserting the ethernet cable from the right or left, use the cable guide marked on the picture (TBD).
- Drill holes into the wall and attach the PoE Secure Wall Mount to the wall. Take care not to pinch the ethernet cable.

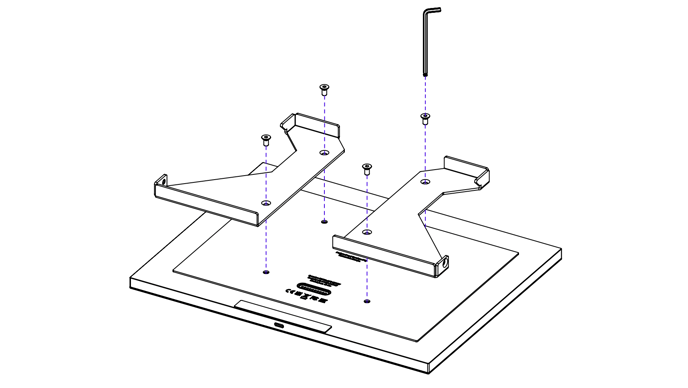

- Attach the included brackets for your Joan 13 PRO device by screwing them onto the rear of the Joan 13 PRO as shown on the picture (TBD) using 4x M4x8 screws.
- Hang your Joan 13 PRO onto the PoE Secure Wall Mount, then screw 2x M4x8 Security screws into the sides of the PoE Secure Wall Mount.
For more detailed instructions, please click here
Joan 13 Pro wall mount dimensions:
- Height: 140 mm / 5.5 in
- Width: 276.5 mm / 10.9 in
- Depth: 14 mm / 0.6 in
- Weight: 1180g / 2.6 lbs
Frequently Asked Questions
Q: Can the device be connected to Wifi while it is placed on the PoE wallmount?
A: Yes, the device is connecting to the Wifi network by default. If you wish to connect using ethernet, please open the latest version of the Joan Configurator application on your mobile phone, connect to the device, click on Advanced connectivity and change the Connection Type from Wireless to Ethernet.
Q: There is no PoE functionality in the office. Can I still connect the device to the network using Ethernet cable?
A: Yes, the device is going to connect to Ethernet without having the PoE functionality enabled on your network. Please note, the device needs an external power source to turn on the LED indicators therefore you may want to consider getting an IEEE 802.3at compliant PoE injector to activate the LEDs and to keep your device battery constantly charged.
Q: What kind of network cables are supported?
A: CAT5(e) and CAT6 cables are supported. Additionally, we advise using AWG 26 or 28 UTP cables, because they have a smaller bend radius and enable a more smooth integration.
Q: Do I need to set anything on my network switches?
A: The PoE wallmount for the Joan 13 Pro devices uses a limited 10 MBit/s connection.
The network switch should have the auto-negotiation on the interface or the network speed 10MBit/s enabled.
Our support agents are always ready to answer your questions regarding the PoE wallmount or any other devices. Feel free to contact us via chat or the support@getjoan.com email address.
